Wellhead Equipment API Sand Trap / Sand Separator For Surface Testing Service
Wellhead Equipment API Sand Trap / Sand Separator For Surface Testing Service Wellhead Equipment API Sand Trap / Sand Separator For Surface Testing Service
Contactar ahora

Información detallada
Producto: Trampa de arena Solicitud: Servicio de pruebas de superficie de pozos
Presión de trabajo: 5000-15000 psi Estándar: Las condiciones de producción
Material: Acero aleado Entrega: 40 dias
TPI: SGS, BV
Resaltar:

API sand trap wellhead equipment

,

surface testing sand separator

,

wellhead sand trap separator

Descripción de producto

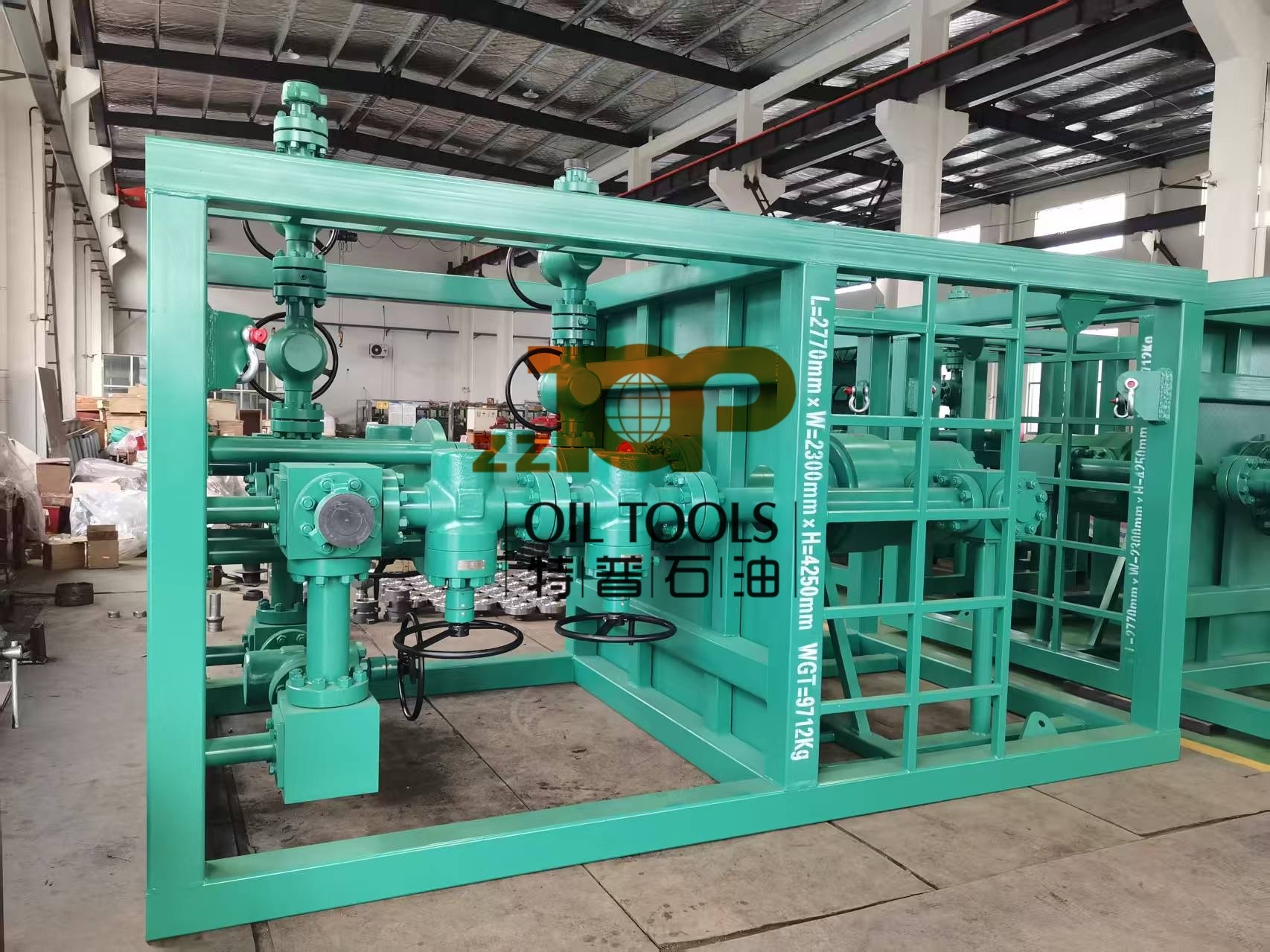

Wellhead Equipment API Sand Trap / Sand Separator For Surface Testing Service

Sand Trap/catcher is designed as per API 6A standard for wellhead surface testing operation. High pressure sand trap is used to remove sands, proppants and other solid particles from high pressure and high yield gas well effluent to prevent erosion of downstream equipment. Typically the sand catcher is applied for completion cleanups, maximum sand-free rate tests, gas well production, testing and sand control after well fracturing, perforating bullet case,sand-gravel from formation.

Sand catchers are usually located between the wellhead systems and plug catchers &trash catchers and are great for flowback on all of your sand fractured stimulations and high pressure gas wells.

Specification of Sand Catcher
Working pressure 5,000 PSI/35 Mpa,10,000 PSI /70 Mpa,15,000 PSI/103.5 Mpa,
Working Temperature -29 to 121 deg C[-4 to 250 deg F]
Gas flow capacity up to 50 MM scf/d
Liquid flow capacity 5,000 Bpd
Inlet and Outlet Connection Union or Flange
Unions Fig 602,Fig 1002,Fig 1502
Flanges API 6A Flanges
Design Codes API SPEC.6A
Sour Service Latest NACE MR O175
Customizable is also available
